    PT100 2 or 3 Wire Stainless Steel Temperature Probe with Fast Reaction For Gas Oven in Kitchen

    Ask Lasest Price
    Brand Name : XIXITRONICS,TRSensor
    Model Number : PT-RTD Series
    Certification : RoHS , REACH
    Payment Terms : T/T
    Supply Ability : 1 Million Pieces Per Year
    Delivery Time : 7-12 work days
    • Product Details
    • Company Profile

    PT100 2 or 3 Wire Stainless Steel Temperature Probe with Fast Reaction For Gas Oven in Kitchen

    Silicon Round Jacket PT100 Temperature Probe Fast Reaction 0.3 Celsius Tolerance PT-RTD Series


    Features:
    A platinum resistor is built into the various housing
    Proven long term Stability and Reliability
    Interchangeability and High Sensitivity with High precision

    Product is compatible with RoHS and REACH certifications
    SS304 tube is compatible with FDA and LFGB certifications


    Applications:
    White goods, HVAC, and Food sectors
    Automotive and Medical
    Marine, Energy management and Industrial equipment

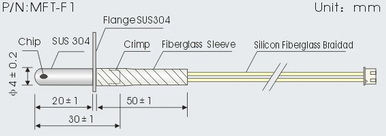

    Dimensions:

    Water Dispenser 100K Flanged Temperature Sensors Air Fryer MFT-F17 Series 0 Water Dispenser 100K Flanged Temperature Sensors Air Fryer MFT-F17 Series 1

    Product specification:


    Specification

    (according to IEC 751)
    R 0℃
    (Ω)
    Tolerance
    Long-term stability
    Temperature coefficient
    operation temperature range (℃)
    XXPT-RTD -100-B
    100
    DIN EN 60751, class B
    max. R0-drift 0.04% after 1000 h at 500°C
    TCR = 3850 ppm/K
    -70~500
    XXPT-RTD -100-A
    100
    DIN EN 60751, class A-50~300
    XXPT-RTD -100-C
    100
    DIN EN 60751, class 1/3 DIN0~150
    XXPT-RTD -500-B
    500
    DIN EN 60751, class B-70~500
    XXPT-RTD -1000-B
    1000
    DIN EN 60751, class B-70~500
    XXPT-RTD -1000-A
    1000
    DIN EN 60751, class A-50~300
    XXPT-RTD -1000-C1000DIN EN 60751, class 1/3 DIN0~150
