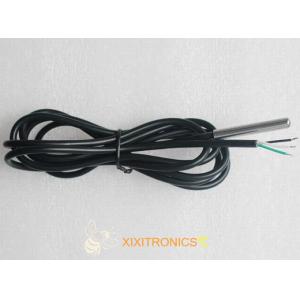

    3 Wire PT100 Platinum RTD Temperature Sensor

    Ask Lasest Price
    Brand Name : XIXITRONICS,TRSensor
    Model Number : PT-RTD Series
    Certification : RoHS , REACH
    Payment Terms : T/T
    Supply Ability : 1 Million Pieces Per Year
    Delivery Time : 7-12 work days
    • Product Details
    • Company Profile

    3 Wire PT100 Platinum RTD Temperature Sensor

    3 Wire Platinum Resistance Temperature Detectors PT100, PT1000 Series


    Features:
    A platinum resistor is built into the various housing
    Proven long term Stability and Reliability
    Interchangeability and High Sensitivity with High precision

    Product is compatible with RoHS and REACH certifications
    SS304 tube is compatible with FDA and LFGB certifications


    Applications:
    White goods, HVAC, and Food sectors
    Automotive and Medical
    Marine, Energy management and Industrial equipment


    Dimensions:



    Product specification:


    Specification

    (according to IEC 751)
    R 0℃
    (Ω)
    Tolerance
    Long-term stability
    Temperature coefficient
    operation temperature range (℃)
    XXPT-RTD -100-B
    100
    DIN EN 60751, class B
    max. R0-drift 0.04% after 1000 h at 500°C
    TCR = 3850 ppm/K
    -70~500
    XXPT-RTD -100-A
    100
    DIN EN 60751, class A-50~300
    XXPT-RTD -100-C
    100
    DIN EN 60751, class 1/3 DIN0~150
    XXPT-RTD -500-B
    500
    DIN EN 60751, class B-70~500
    XXPT-RTD -1000-B
    1000
    DIN EN 60751, class B-70~500
    XXPT-RTD -1000-A
    1000
    DIN EN 60751, class A-50~300
    XXPT-RTD -1000-C1000DIN EN 60751, class 1/3 DIN0~150
